Top Sheet or Pallet Dispensers: Engineered for Seamless OEM Integration
Whether as part of a turnkey packaging line or an upgrade to existing operations, our dispensers deliver efficiency, accuracy, and long-term reliability.

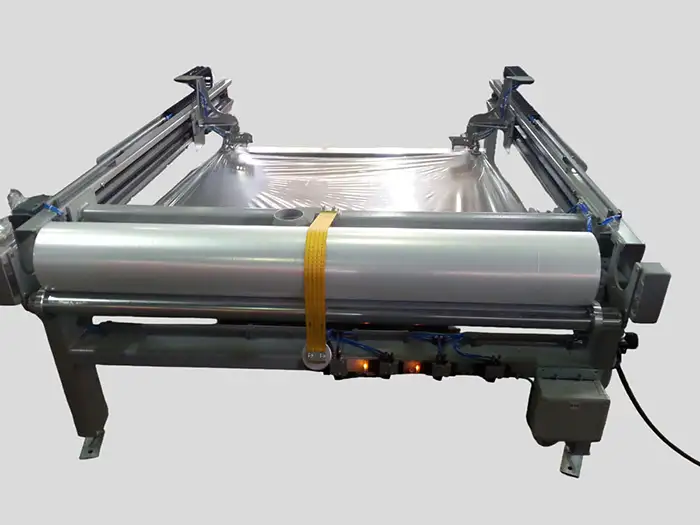

Pallet Sheet Dispenser
The InduQuip Pallet Sheet Dispenser is an essential sub-component, meticulously engineered to integrate seamlessly into your automated, high-throughput packaging and palletizing lines.
Our dispenser ensures the swift and accurate application of a protective top sheet from a roll. This process is optimized for minimal cycle time and maximum film-handling efficiency, directly contributing to a lower Total Cost of Ownership (TCO) and maximizing your production line’s uptime.
Key Features
Process Reliability: Robust, industrial-grade components ensure continuous, high-volume operation with minimal intervention.
Reduced Material Waste: Precision cutting and placement mechanisms guarantee consistent application and drastically reduce film consumption.
Modular design: The dispenser provides an immediate barrier against dust, moisture, and debris, preserving product integrity through transit and storage.
Optional: Integrated Nailing Module
For applications demanding absolute load stability and redundant layer fixation, we offer an optional, integrated nailing module.
This feature mechanically secures the applied top sheet directly to the pallet structure, eliminating the risk of sheet shift or removal, even in extreme logistics environments.

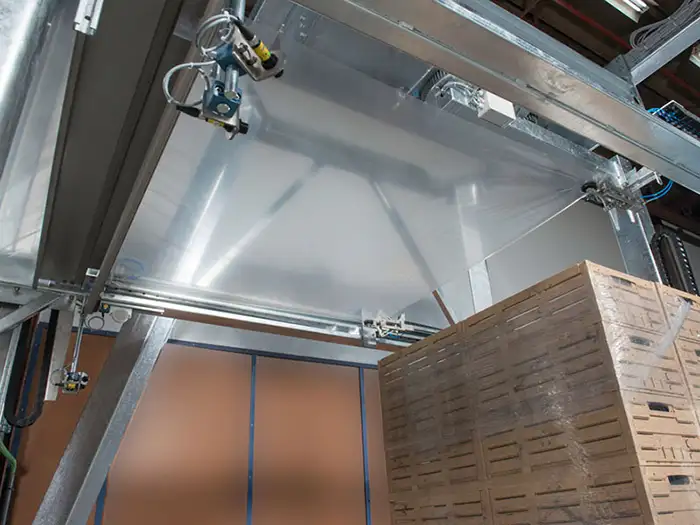

Top Sheet Dispenser
The top-sheet dispenser is fully electrical/pneumatic and can be integrated into the modular set-up of the wrapping line. Thanks to effective engineering and a solid construction, this top-sheet dispenser is extremely reliable and low-maintenance.
Modularity also applies to the top sheet dispenser, suitable for dust-proof wrapping. If desired, the modular line can be equipped with 5 additional buffer positions. The top sheet dispenser has a low profile, allowing for safe and ergonomic loading of a new roll of top sheet next to the roller conveyor. The maximum top sheet width is 1500 mm.
The automatically applicable top sheets are available for top sheet dispensers used in combination with a pallet conveyor and are easy to use with stretch wrapping film.
|
Pallet formats |
Euro/Block and Dusseldorfer |
|
Pallet height |
50 -2240 mm |
|
Film thickness |
30-50 microns |
|
Power supply |
230/400v, 3 phase + N + PE, 50Hz |
|
Conveyor height |
ca. 110 mm |
|
Automatic height detection |
|
|
Roll-end detection |
|
Smart connectivity for centralized control and diagnostics of procedures
Protective top sheet application to safeguard products from dust and moisture
Scalable configurations to adapt as production demands evolve
Automated pallet delivery to increase throughput and eliminate manual handling
